Project
multiple sensor system concerning soil conservation

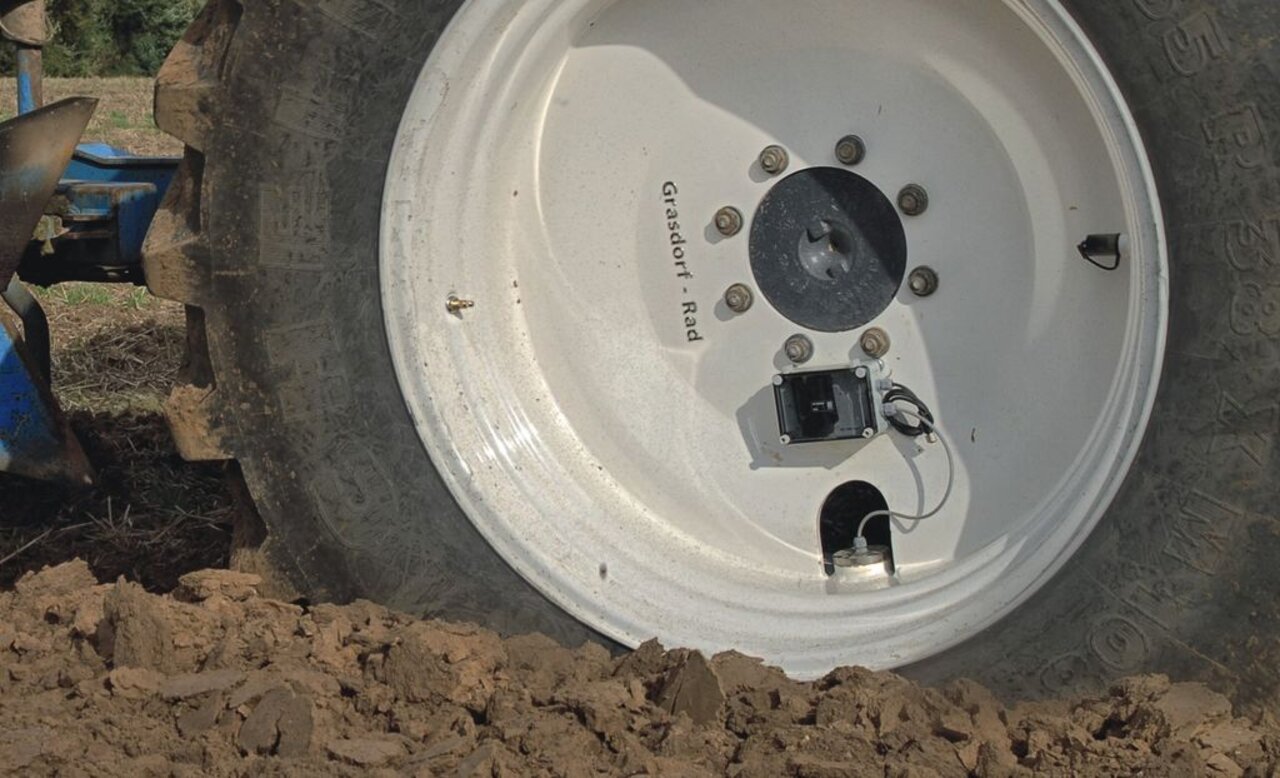

![Ultrasound sensor](/media/_processed_/7/7/csm_Ultraschallsensor_Reifen_11c60370ea.jpg)
Adaptation of a trafficability sensor on large agricultural machines to test the current trafficability with regard to soil conservation
General assessments for the compaction sensitivity of soils are existing. The machine driver needs information about the actual compaction sensitivity of his fields for a soil conservativetrafficking, which by means of modern sensors has to be considered.
Background and Objective
The main goal of conservational soil protection is to reduce soil pressure. Among the technical solutions is a trafficability sensor, which among other things displays on-line measurements of track depths of the current settlement of top- and subsoil and thus delivers a measurement for the current compaction risk for the soil. Therefore the track depth at the surface can be interpreted regarding the threat of soil functions.
Target Group
Agricultural industry, policymakers, extension services and agricultural practitioners
Approach
An adjustment of vehicle parameters to the state of compaction takes place, for example, with a sonar sensor which adjusts the maximum deflection of the tires by altering the inner tire pressure. A hydrostatical soil settlement measurement, in addition to a soil pressure measurement, provides information about changes in the soil structure following a trafficking – elastic and plastic soil deformations are shown.
Data and Methods
Adaptation of intelligent sensor systems to heavy machinery for online measurement of: soil settlement, track depth and tire deflection as a prerequisite of a tire inflation pressure controlsystem.
Our Research Questions
online determination of the soil condition
load depending tire inflation pressure control system
Results
development of an Europe-wide management system for heavy machinery
Thünen-Contact
![](/typo3temp/assets/_processed_/3/6/csm_Kraft-M-2k_01_28ab92b4e3.jpg)
Involved external Thünen-Partners
- Christian-Albrechts-Universität zu Kiel
(Kiel, Deutschland) -
Agroscope
(Reckenholz, Schweiz)
Duration
10.2006 - 12.2022
